Centrex 3000 Series Centralized Composting Toilet Systems

2007-08 Brochure in PDF format
very informative (only 3 mg)

Click on any of the pictures through out the site for a larger view in a new window.

The Centrex 3000 series high capacity centralized composting toilet systems feature an autoflow design where as the drum rotates, the compost moves automatically through the drum and then drops into a separate collection chamber at the end of the unit.

These high capacity central composting systems are rated up to 11 family members for weekend and vacation use and 8 members for continuous usage (usage can be doubled for short periods of time). Like the rest of the Centrex series, multiple toilets can be used as capacities are rated by number of people and not the number of toilets.

Centrex 3000 - Flush, Electric Features:

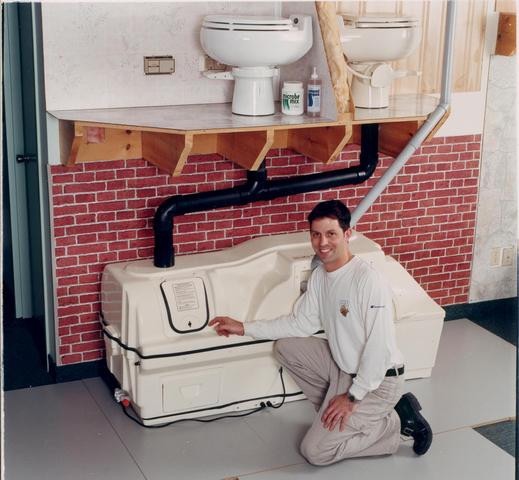

(Shown with optional toilet model 510)

Centrex 3000	1 pint flush style, electric unit 6 adults - 8 family members continuous usage 9 adults - 11 family members weekend/vacation For applications where continuous 115 volt is available 35 watt turbo fan 370W/115V thermostatically controlled heater 2" vent stack 1" drain (required) 71"W x 27 1/2"D x 30 1/4"H Toilets can be located up to 20' away using standard 3" waste pipe Requires 1 pint flush toilet model 510 or 511 including mounting flange ($352) $2045 (plus shipping)

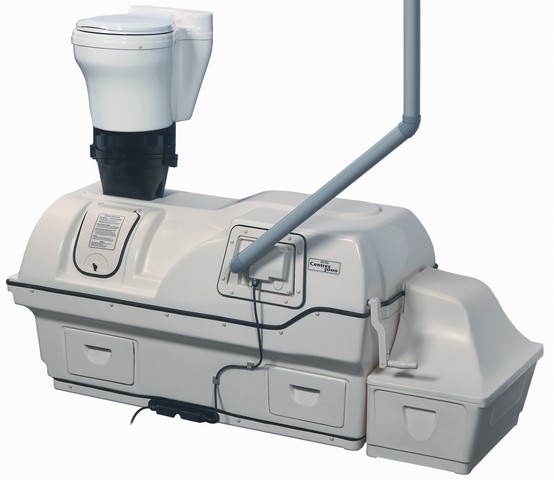

Centrex 3000 AF - Electric, Water Free Features: (Shown with required dry toilet)
Centrex 3000 AF	No water, electric unit 5 adults - 7 family members continuous usage 8 adults - 10 family members weekend/vacation For applications where continuous 115 volt is available 35 watt turbo fan 370W/115V thermostatically controlled heater 2" vent stack 1" drain (optional) 71"W x 27 1/2"D x 30 1/4"H Ideal for locations where water is not available or where minimal environmental impact is desired Unit requires being located directly below toilet Requires Sun-Mar dry toilet & kit ($295) $2145 (plus shipping)

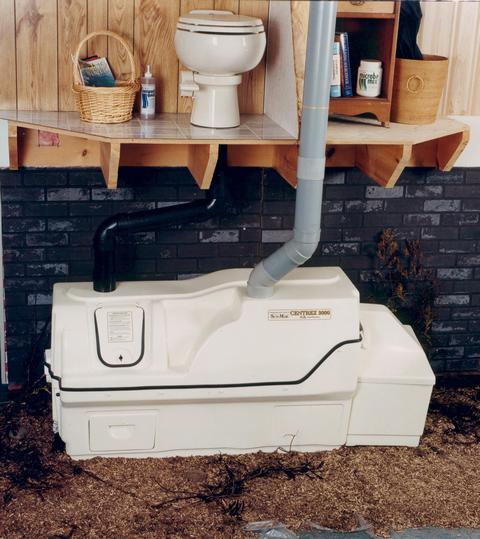

Centrex 3000 NE - Flush, Non-electric Features: (Shown with optional toilet model 510)
Centrex 3000 NE	1 pint flush, non-electric unit 5 adults - 7 family members continuous usage 8 adults - 10 family members weekend/vacation 4" vent stack 1" drain (required) 71"W x 27 1/2"D x 29 1/4"H Can locate toilets up to 20' away using standard 3" waste pipe Optional 2.4W/12V DC vent fan available Requires 1 pint flush toilet model 510 or 511 including mounting flange ($352) $1845 (plus shipping)

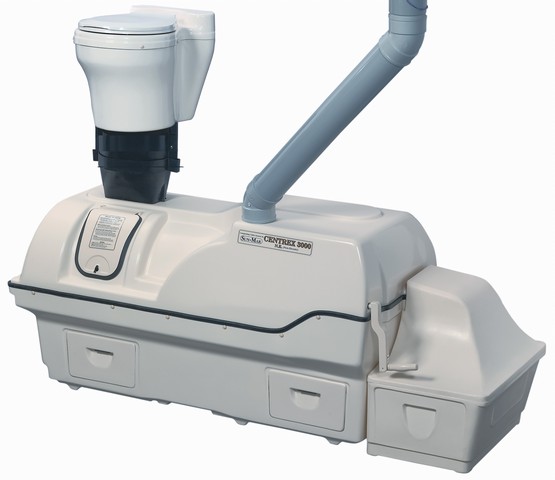

Centrex 3000 AF NE - Waterless, Non-electric Features: (Shown with required dry toilet)
Centrex 2000 AF NE	no water and no electricity needed 5 adults - 7 family members continuous usage 7 adults - 9 family members weekend/vacation 4" vent stack 1" drain (required) 71"W x 27 1/2"D x 29 1/4"H Optional 2.4W/12V DC vent fan available Ideal for locations where water is not available or where minimal environmental impact is desired Unit requires being located directly below toilet Requires Sun-Mar dry toilet & kit ($295) $1945 (plus shipping)

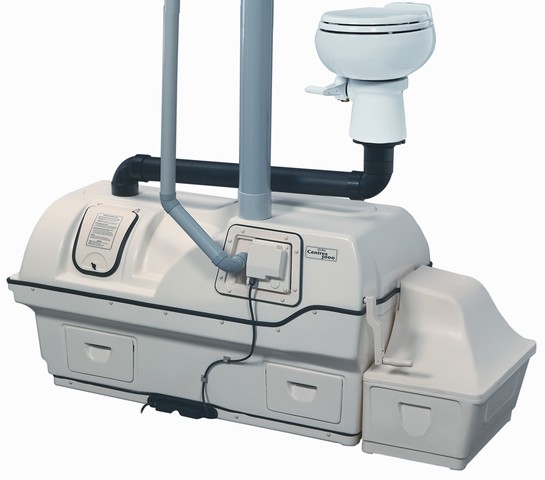

Centrex 3000 AC/DC Features:
Centrex 3000 AC/DC	Basically, this unit contains all the options of all the units above and is available in a 1 pint flush model for $2145 or no flush, non-water model for $2245 (toilet and shipping not included). Capacities are the same as the above models whose features will be used (i.e. flush vs non-flush, AC with heater vs DC without, etc.).

For available toilet options click here.

**********
